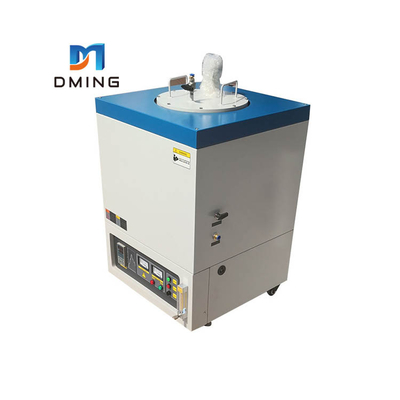

1800C Vacuum Atmosphere Crucible Furnace for Glass Metal Heating Sintering Melting
1800C Vacuum Atmosphere Crucible Furnace for Glass Metal Heating Sintering Melting
The shell of DM-CF series vacuum crucible furnace is made of high-quality cold-rolled steel plate through imported epoxy powder electrostatic spraying process, which is resistant to high temperature and corrosion; the double-layer furnace shell is equipped with an air cooling system to ensure that the temperature of the shell is close to room temperature;
The heating element is made of high-quality silicon molybdenum rods; the insulation material is made of ceramic fiber, which is light in weight, heat-resistant, energy-saving and environmentally friendly;
Temperature control programmable temperature control, PID self-tuning, accurate temperature control, can realize automatic temperature rise and fall;
Circuit system adopts independent over-temperature protection , At the same time, it has the functions of over-voltage, over-current, leakage and short circuit protection.
This type of box furnace is widely used in universities, scientific research institutes and enterprises for R&D and production applications in the fields of metal, electronics, ceramics, chemicals, new materials, and medicine.
|
Items |
Technical Parameters |
|
Model |
DM-CF-18 |
|
Power |
AC 220V 50Hz 4KW |
|
Max Temperature |
Design temperature 1800℃, long-term working temperature ≤1700℃ |
|
Heating Rate |
0-15℃/min,adjustable |
|
Chamber Size |
150*200mm(Dia*H) [Can Be Customized] |
|
Temperature Control |
Intelligent PID programmable control |
|
Heating Element |
MoSi2 |
|
Thermocouple |
B type(0-1800℃) |
|
Temperature Accuracy |
±1℃ |
|
Vacuum |
-0.1MPa |
|
Accessories |
1 Fire block\1 crucible tongs\1 pair of fire-resistant gloves\ 1 instruction manual |
|
Warranty |
One year (except heating elements and wearing parts) |
